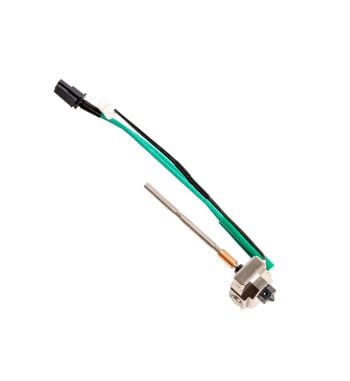

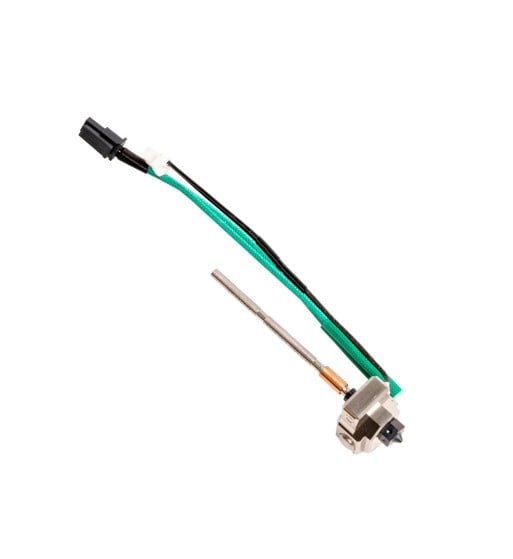

Prusa Nextruder High Temperature Hotend 0.4mm for CORE One/+/Gen2 and L/+
The most affordable way to print High-Temp materials
HT Hotend for CORE One series:
- Swap the hotend and upgrade your CORE One to an industrial printer
- HT Hotend significantly improves the quality of otherwise hard-to-print filaments, such as PA11 Carbon Fiber and PC Blend Carbon Fiber
- Plus, the portfolio expands with PPS, PPA and other high-end materials
Print components with extreme chemical and heat resistance
HT Hotend supports printing PPS filaments filled with carbon or glass fibers. PPS offers a heat deflection temperature up to 250 °C and great mechanical resistance. It offers extreme chemical resistance and a UL94 V-0 flame-retardant rating. No known solvent can dissolve PPS at temperatures below 200 °C.
Make moving parts with maximum wear resistance
PPA Carbon Fiber is a high-performance polyamide with strong resistance to wear, heat, chemicals, and mechanical stress. It offers better dimensional stability and lower hygroscopicity than commonly used polyamides, such as PA6, PA12, and PA612.
Stronger parts from PC Blend Carbon Fiber
Although it is printable with a regular hotend, the Prusament PC Blend Carbon Fiber gets better properties when printed at elevated temperatures. Printing at 350 °C improves the material's interlayer adhesion by 7 %, making the components more resistant to breaking.
Prusament PA11 Carbon Fiber with better mechanical properties
PA11 Carbon Fiber is at the lowest temperature limit when printed on a regular hotend. But printing with an HT Hotend improves the material's interlayer adhesion by 23 %.
Improve the low-temperature materials' qualities
The HT Hotend is capable of printing regular materials like ASA or PC Blend. We offer a high-temp PrusaSlicer profile for this popular Prusament to reduce warping and improve the material's overall mechanical properties.
Technical Parameters
Maximum working temperature 400 °C
Supported 3D printers CORE One, CORE One+, CORE One+ (gen 2), CORE One L, CORE One L+
Supported Prusa high-temperature print profiles ASA, PC Blend, PC Blend Carbon Fiber, PA11 Carbon Fiber, PPS-CF, PPS-GF, PPA-CF
Stock nozzle Hardened non-high-flow 0.4 mm (ObXidian 500)
