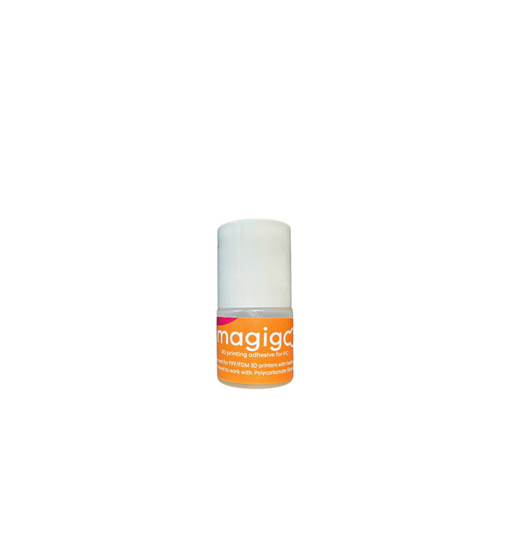

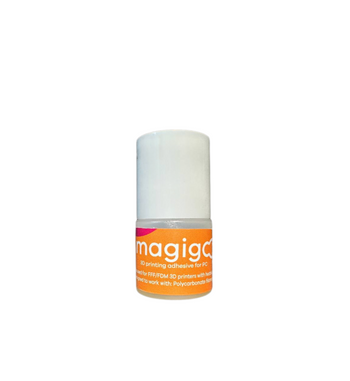

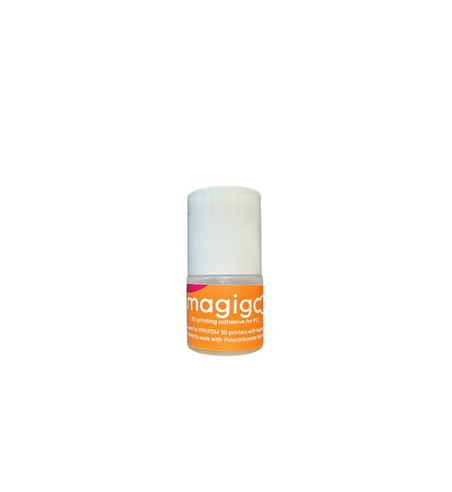

Magigoo PC Polycarbonate 3D Printing Adhesive 10ml
The Magigoo PC Polycarbonate 3D Printing Adhesive 10ml is designed to work exclusively with polycarbonate type 3D printer filaments. This adhesive for professional use makes sure prints stick firmly when the print-bed is hot and that the part is easy to remove once it cools. This unique and innovative mechanism means that no tools are needed to remove prints from the bed. They just pop off when the bed cools down.
Why Magigoo PC?
The strength and toughness of PC make it an ideal FDM material for the production of functional prototypes as well as end use part, nonetheless the material does present some printing challenges. Virgin PC has a high glass transition temperature (Tg) and thus can be used in high temperature applications. However, having a high Tg can make it very difficult to print using desktop printers, as these are usually not equipped to cater for the high printing temperatures required to print virgin PC. Virgin PC in fact tends to warp considerably when printed at an insufficient bed temperature (<130 ºC), in non-heated enclosed chambers without the use of an appropriate bed adhesive. Certain manufacturers have improved the printability of PC by the use of plasticizers or blending with other materials. Nonetheless when using these solutions some difficulties are still encountered, firstly with adhesion especially on larger parts still can be an issue. In addition to this some bed adhesion sheets have been proposed to avoid the warp encountered in larger prints, but in this case there is a high tendency that the adhesion sheet being used fuses irreversibly to the print. This means that the expensive sheet needs to be removed very often and also incurs a lot of post processing and cleaning. Magigoo PC can be used on glass or multiple other surfaces. Use on other plastic based surfaces, including sheets is recommended to provide strong adhesion and preventing the part to fuse to the sheet.
MAGIGOO PC has been designed and tested to work with different PC filament brands. As the composition of each plastic is a little different, the ideal settings for Magigoo PC may vary.
• Shake the bottle vigorously.
• Apply to the desired area by pressing the nib on the bed (activating the inner valve) and spreading as needed.
• Print according to the filament/printer manufacturers recommendations
• Allow to cool and Remove – The Part should pop right off.
• Clean - Use a damp cloth to wipe off.
SAFETY:
Using this product with other PC type filaments might cause over adhesion and damage your build surface.
TIPS:
For larger prints a 20 mm brim with multiple layers is recommended
In cases of excess adhesion, it is recommended to wet print bed with a small amount of water slowly work it below the part, this should make part removal easier
Important note : The applicator has an active spring valve, which activates when the applicator is pressed against the print sheet. Please do not squeeze the bottle like it is "a ketchup bottle" - the applicator may pop off if you do. The bottle can be squeezed gently if more flow is required, but only when the nib is pressed against the print sheet surface. DO NOT squeeze the bottle at any other time when the cap is off as this may result in the contents (which are, in fact, adhesive) popping out of the bottle (and making a mess).
